Raymarine Quantum Q24D Doppler 18" Radar with no Power or Data Cable
Home / Equipment catalogue / Navigation & Radar / Raymarine Quantum Q24D Doppler 18" Radar with no Power or Data Cable
Raymarine · Code E70498
Without cables
Quantum 2 Q24D · Without cables.
Radar · Radar
Navigation & Radar

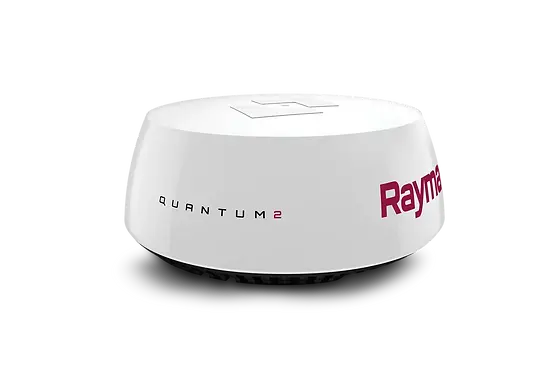

Exterior view Quantum 2
Image: Raymarine
What this version includes
Included:
Quantum 2 Q24D
Not included:
Power cable
Data cable
Discover the product
Raymarine Quantum Q24D Doppler 18" Radar with no Power or Data Cable, part number E70498, for a marine system using radar. The compatible display, select the antenna and installation components according to the contents of the specific version.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
18 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
Quantum Data Cable 5m with Raynet connector · A80274
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
Quantum Data Cable 10m with Raynet Connector · A80275
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
Quantum Data Cable 15m with Raynet Connector · A80310
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
Quantum Data Cable 25m with Raynet Connector · A80311
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
Cyclone Data Cable 5m with Raynet connector · A80656
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum / Cyclone data cables · Official manufacturer page · checked 2026-10-10
Cyclone Data Cable 10m with Raynet Connector · A80657
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum / Cyclone data cables · Official manufacturer page · checked 2026-10-10
View all 18 connections in the guide ↗
Functions & interfaces
Radar
Technical specifications
Equipment type
Radar
Series
Quantum
Diameter / height
541.0 mm | 209.5 mm
Weight
5.6 kg
Power supply
Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc | Maximum: 31.2 V dc
Operating voltage range
Minimum: 10.8 V dc | Maximum: 31.2 V dc
Consumption
Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
Protection against water
IPX6
Operating temperature
-10°C to +55°C
Peak power
20W
Beam width
Horizontal: 4.9° | Vertically: 20°
Rotation speed
24 rpm nominal
Monitoring targets
Tracking of 25 simultaneous MARPA and / or ARPA targets
Dimensions
Height: 209.5 mm, Diameter: 541.0 mm
Package
Without cables
Power cable
Not included
Data cable
Not included
More images
Image: Raymarine
Image: Raymarine
Image: Raymarine
Image: Raymarine

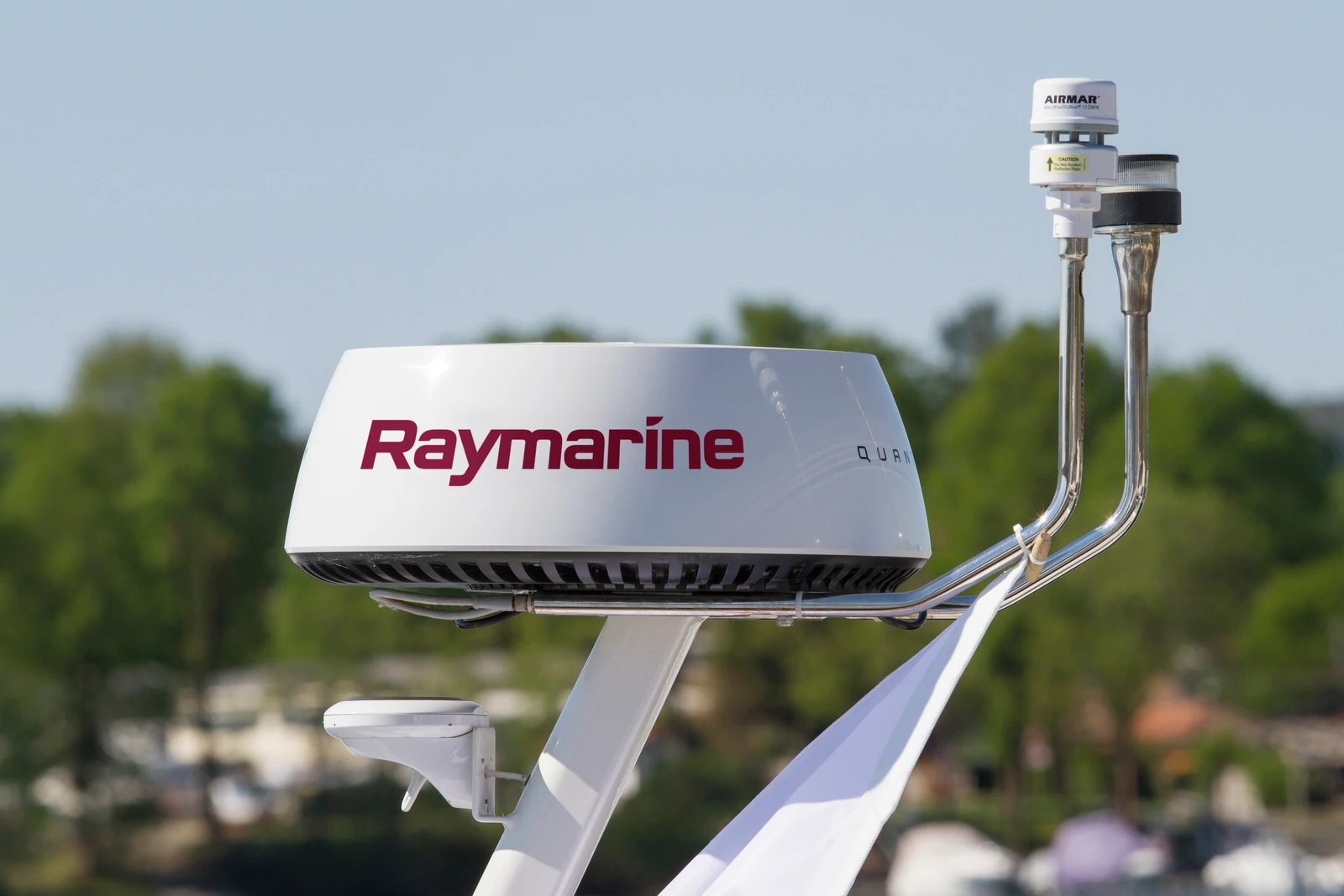

Image: Raymarine / Bill Dee
Documents & technical resources
Quantum 2 Q24D — installation instructions (PDF) · English ↗
Product videos
Quantum 2 — overview radar Doppler ↗
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
Request information by email ↗
