Raymarine Black Quantum Q24D Doppler 18" Radar with 10m Power Cable and 10m Data Cable
Home / Equipment catalogue / Navigation & Radar / Raymarine Black Quantum Q24D Doppler 18" Radar with 10m Power Cable and 10m Data Cable
Raymarine · Code T70549
Black · with cables 10 m
Quantum 2 Q24D · Black · with cables 10 m.
Radar · Radar
Navigation & Radar

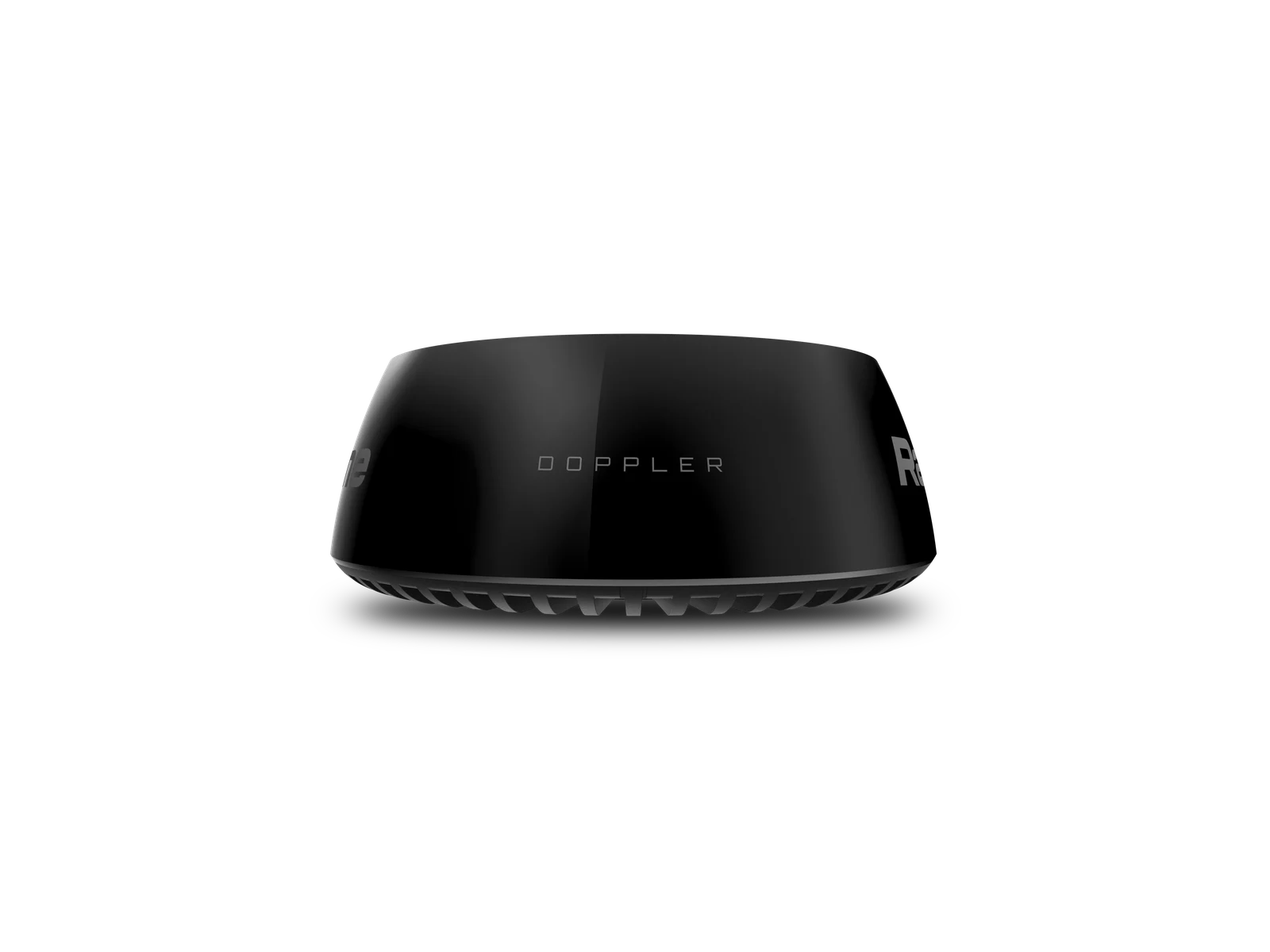

Black version — front and upper view
Image: Raymarine
What this version includes
Included:
Quantum 2 Q24D
Power cable 10 m
Data cable 10 m
Discover the product
Raymarine Black Quantum Q24D Doppler 18" Radar with 10m Power Cable and 10m Data Cable, part number T70549, for a marine system using radar. The compatible display, select the antenna and installation components according to the contents of the specific version.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
18 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
Quantum Data Cable 5m with Raynet connector · A80274
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
Quantum Data Cable 10m with Raynet Connector · A80275
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
Quantum Data Cable 15m with Raynet Connector · A80310
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
Quantum Data Cable 25m with Raynet Connector · A80311
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
Cyclone Data Cable 5m with Raynet connector · A80656
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum / Cyclone data cables · Official manufacturer page · checked 2026-10-10
Cyclone Data Cable 10m with Raynet Connector · A80657
Quantum 2 Q24D · Direct
DATA · Quantum cable
No additional adapter is required for this connection.
Functions: Wired radar connection
This path carries data only. A separate radar power cable is also required. Packages supplied with cables already include the stated length.
Quantum 2 Q24D — compatible displays and packages · Official manufacturer page · checked 2026-10-10
Quantum / Cyclone data cables · Official manufacturer page · checked 2026-10-10
View all 18 connections in the guide ↗
Functions & interfaces
Radar
Technical specifications
Equipment type
Radar
Specification scope
Base unit of the package· the accessories are determined from the part number.
Diameter / height
541.0 mm | 209.5 mm
Weight
5.6 kg
Power supply
Either 12 V dc or 24 V dc nominal Minimum: 10.8 V dc | Maximum: 31.2 V dc
Operating voltage range
Minimum: 10.8 V dc | Maximum: 31.2 V dc
Consumption
Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
Protection against water
IPX6
Operating temperature
-10°C to +55°C
Peak power
20W
Beam width
Horizontal: 4.9° | Vertically: 20°
Rotation speed
24 rpm nominal
Monitoring targets
Tracking of 25 simultaneous MARPA and / or ARPA targets
Dimensions
Height: 209.5 mm, Diameter: 541.0 mm
Package
Black · with cables 10 m
Power cable
10 m
Data cable
10 m
Colour
Black

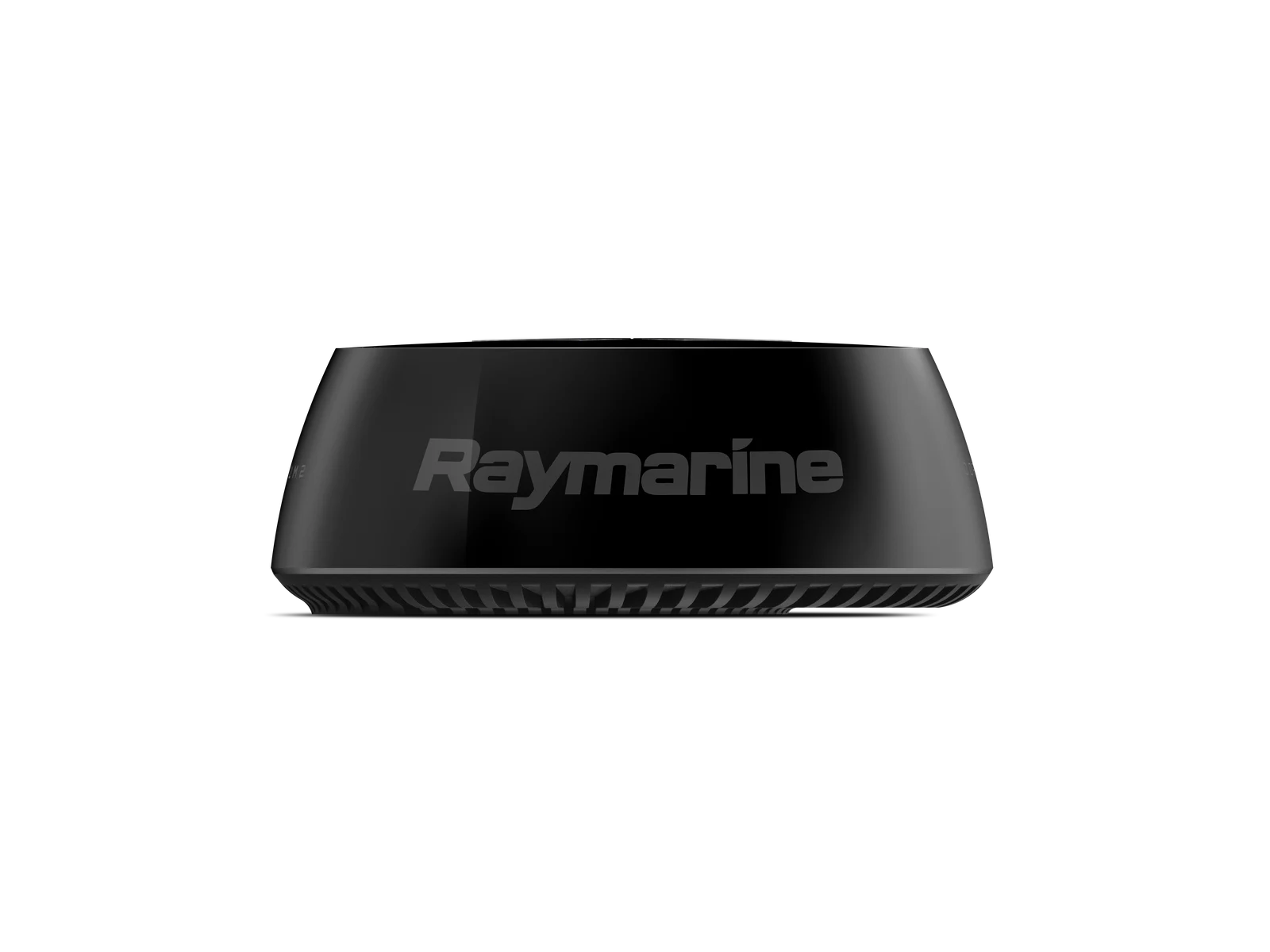

More images
Image: Raymarine
Image: Raymarine
Documents & technical resources
Quantum 2 Q24D — installation instructions (PDF) · English ↗
Product videos
Quantum 2 — overview radar Doppler ↗
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
Request information by email ↗
