Raymarine CAM400 White
Home / Equipment catalogue / Cameras & Monitoring / Raymarine CAM400 White
Raymarine · Code E70716
Camera IP day/night · white version
Cameras & Monitoring

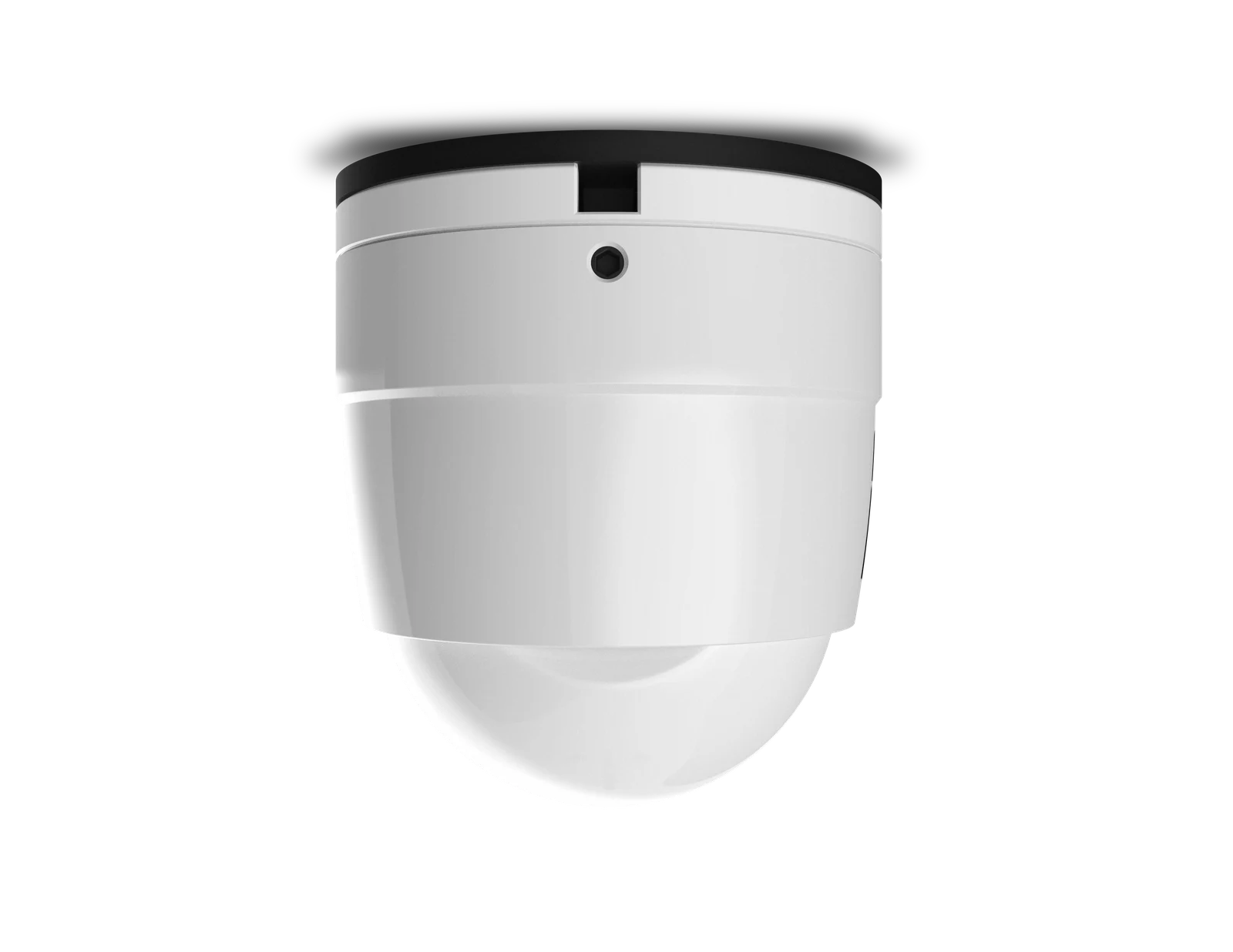

Raymarine CAM400 White — side view of camera.
Image: Raymarine
Discover the product
White CAM400 IP camera, part number E70716. Displays day/night imagery on compatible Axiom displays, with infrared illumination up to 10 m. Augmented reality requires an additional AR200 and a compatible Axiom. Distance lines require Axiom 2 with LightHouse 5.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Image day / night · Infrared lighting · Video IP
Interface:RayNet
Technical specifications
Equipment type
Cameras day / night
Series
CAM400
Colour
White
Imaging
HD day / night
Horizontal field of view
129,4°
Infrared lighting
850 nm · to 10 m
Frame rate
Up to 30 fps
Compression video
H.264 / MJPEG
Power supply camera
12 V DC ή PoE IEEE 802.3af
Supply range DC
10,8–15,6 V DC
Networking camera
RayNet · ONVIF Profile S
Version contents
CAM400 — without transducer AR200
Distance lines
Required Axiom 2 with LightHouse 5
More images

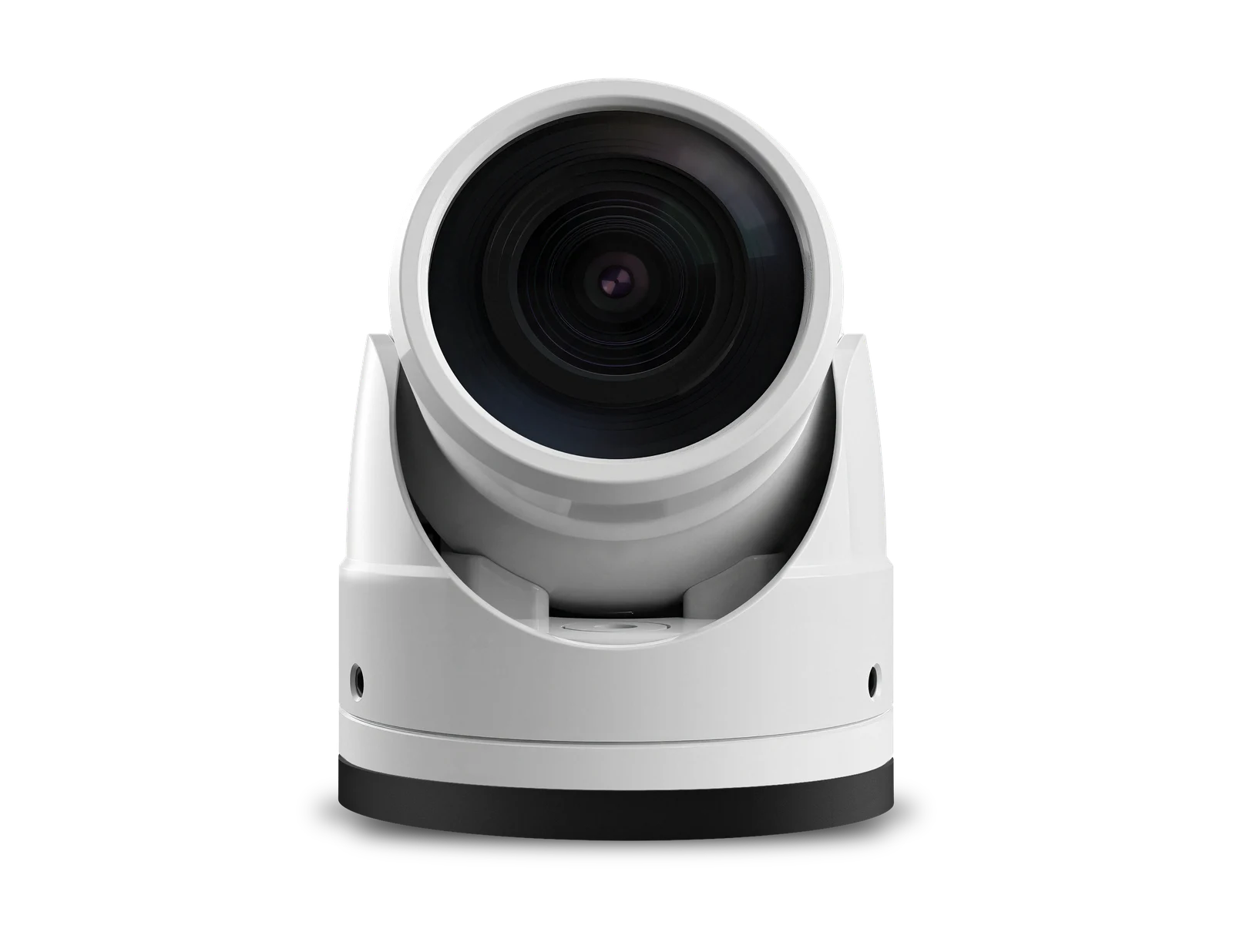

Raymarine CAM400 White — front view of camera. ↗
Image: Raymarine
Raymarine CAM400 White — rear view of camera with mount. ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
