Raymarine CAM400 Black
Home / Equipment catalogue / Cameras & Monitoring / Raymarine CAM400 Black
Raymarine · Code E70717
Expected in early 2027 · Camera IP day/night · black version
Coming soon
Raymarine has announced the black version for early 2027. Current availability is not claimed.
Cameras & Monitoring

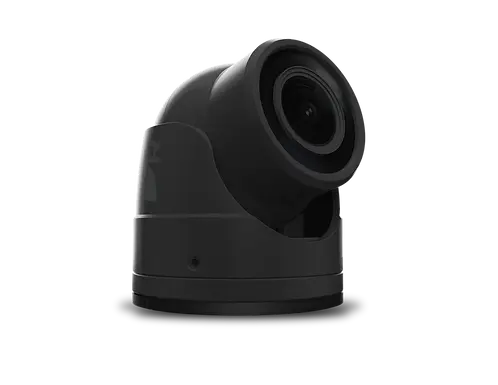

Raymarine CAM400 Black — side view of camera.
Image: Raymarine
Discover the product
Expected in early 2027, according to Raymarine. Black CAM400 IP camera, part number E70717. Displays day/night imagery on compatible Axiom displays, with infrared illumination up to 10 m. Augmented reality requires an additional AR200 and a compatible Axiom. Distance lines require Axiom 2 with LightHouse 5.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Image day / night · Infrared lighting · Video IP
Interface:RayNet
Technical specifications
Equipment type
Cameras day / night
Series
CAM400
Colour
Black
Imaging
HD day / night
Horizontal field of view
129,4°
Infrared lighting
850 nm · to 10 m
Frame rate
Up to 30 fps
Compression video
H.264 / MJPEG
Power supply camera
12 V DC ή PoE IEEE 802.3af
Supply range DC
10,8–15,6 V DC
Networking camera
RayNet · ONVIF Profile S
Version contents
CAM400 — without transducer AR200
Distance lines
Required Axiom 2 with LightHouse 5
Availability announcement
Expected in early 2027
More images

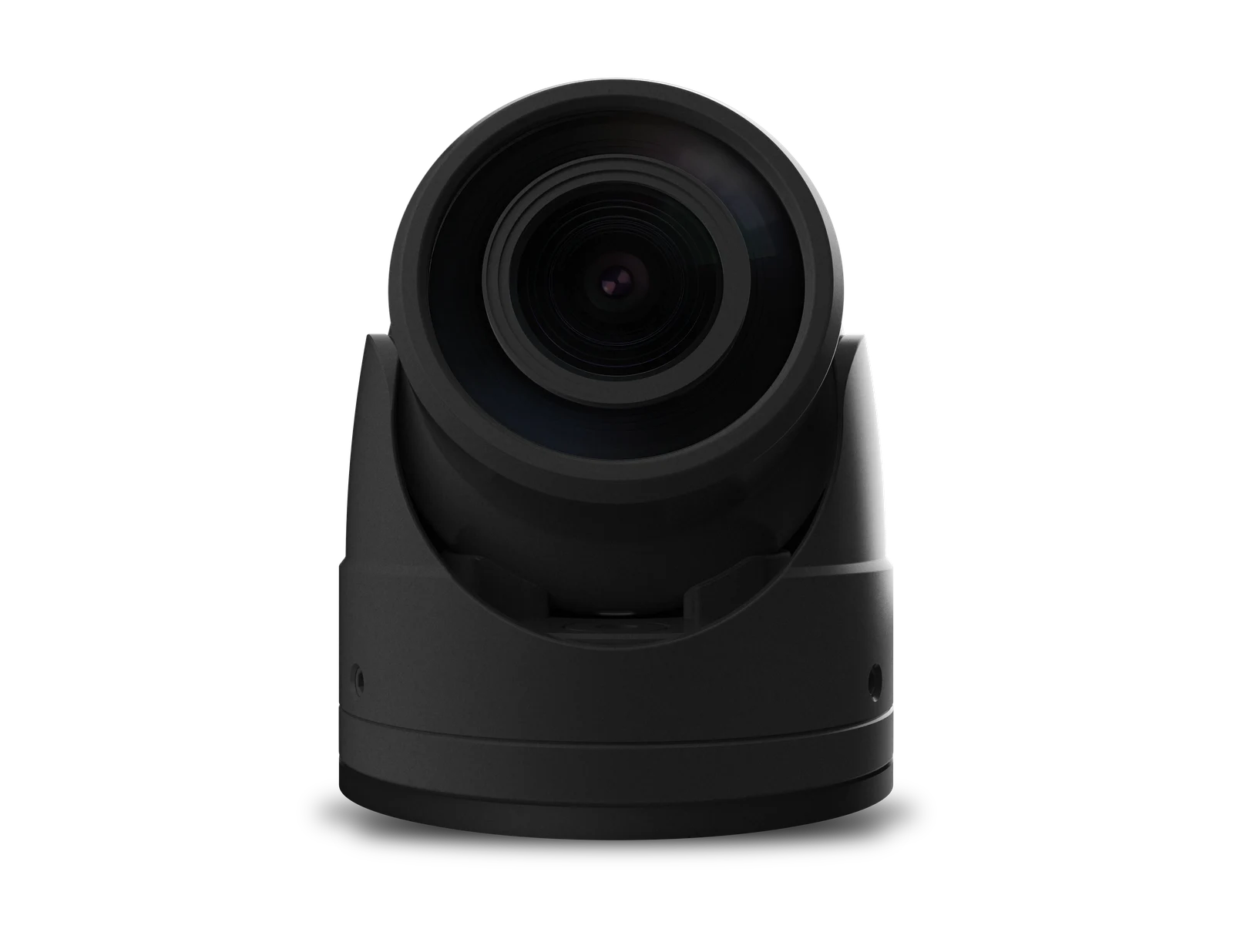

Raymarine CAM400 Black — front view of camera. ↗
Image: Raymarine

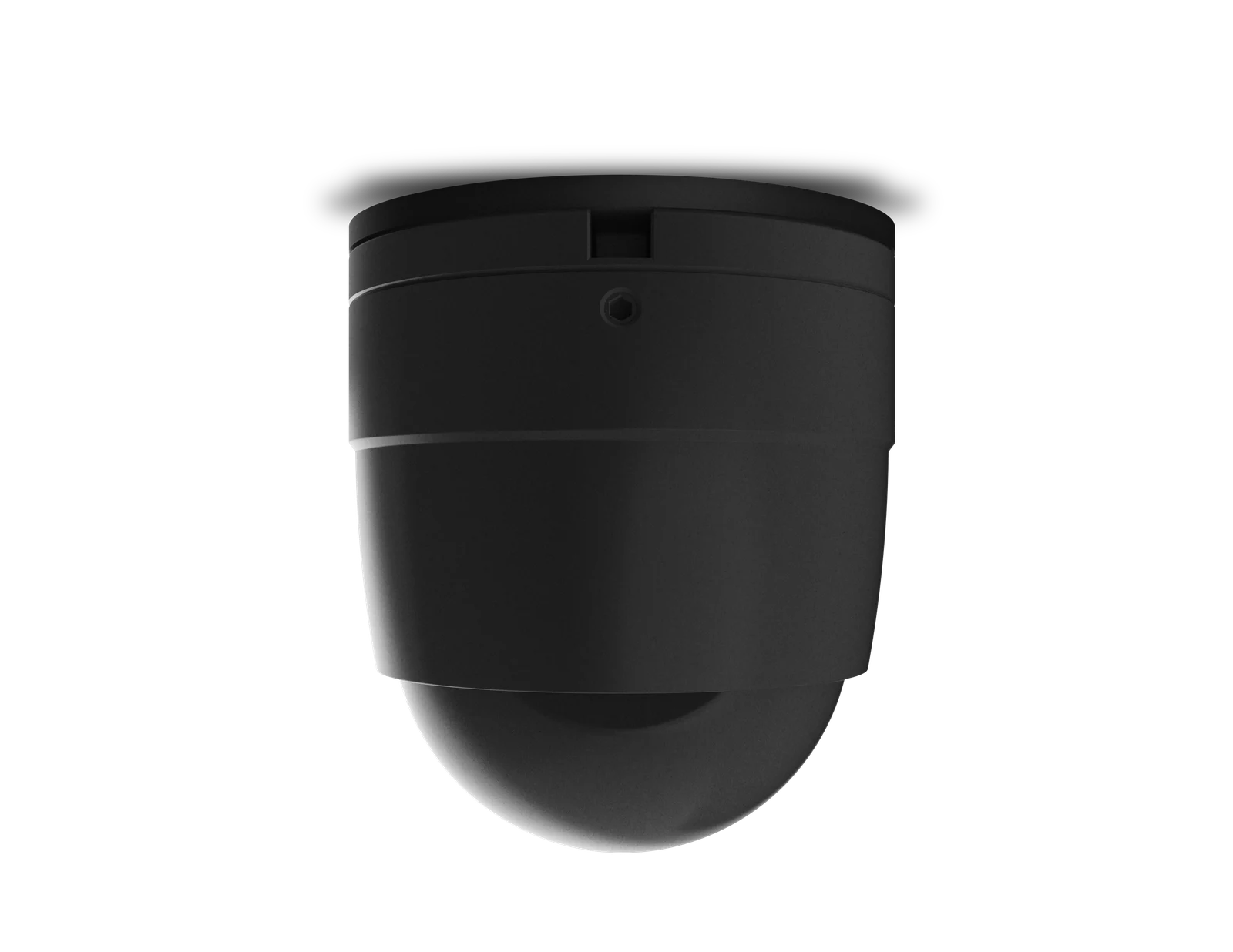

Raymarine CAM400 Black — rear view of camera with mount. ↗
Image: Raymarine
Coming soon
Raymarine has announced the black version for early 2027. Current availability is not claimed.
