Raymarine Axiom+ 12 - 12" MFD
Home / Equipment catalogue / Navigation & Radar / Raymarine Axiom+ 12 - 12" MFD
Raymarine · Code E70638
Chartplotters & MFD · Chart navigation · Navigation GPS/GNSS
Navigation & Radar
Display 12″ with initial page LightHouse
Image: Raymarine
Discover the product
Raymarine Axiom+ 12 navigation display with a bright 12″ IPS screen, a HydroTough protective coating and built-in GNSS. This version operates as a chartplotter without built-in sonar. Bottom imaging requires a compatible networked module and transducer. Radar, AIS and data from other systems are displayed using the corresponding external equipment. Check the included charts and transducers for the specific part number.
We will recommend suitable charts for your cruising area when you contact us.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
19 documented connections · Sources checked: 2026-10-10
Explore connections, components & diagrams ↗
Equipment connection guide ↗
RVM1600 RealVision Black Box Sonar · E70665
Axiom+ without internal sonar · Direct
NETWORK · RayNet
Included with E70665:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Networked sonar display
Requires a compatible LightHouse 4 version, at least 4.1.75, and the same compatible version on every display.
The module requires its own power supply and a compatible transducer. The RayNet cable carries data.
Axiom+ does not support LightHouse 5. Mixed LightHouse 4 / 5 display networks are not supported.
Compatible LightHouse 4 displays · 87436 Rev 2
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Axiom+ — software requirements and LightHouse 5 limitation · 87414 Rev 5
RVX1000 3D CHIRP Sonar Module · E70511
Axiom+ without internal sonar · Direct
NETWORK · RayNet
Included with E70511:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Networked sonar display
Requires a compatible LightHouse 4 version, at least 4.1.75, and the same compatible version on every display.
The module requires its own power supply and a compatible transducer. The RayNet cable carries data.
Axiom+ does not support LightHouse 5. Mixed LightHouse 4 / 5 display networks are not supported.
Compatible LightHouse 4 displays · 87349 Rev 3
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Axiom+ — software requirements and LightHouse 5 limitation · 87414 Rev 5
RNS5 Gigabit Raynet Network Switch · A80731
Axiom+ without internal sonar · Direct
NETWORK · RayNet
Additionally required:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: RayNet network expansion
The switch requires power. Each device occupies one port; functional compatibility between devices is checked separately.
RNS-5 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
RNS8 Gigabit Raynet Network Switch with 4 x POE ports · A80732
Axiom+ without internal sonar · Direct
NETWORK · RayNet
Additionally required:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: RayNet network expansion
The switch requires power. Each device occupies one port; functional compatibility between devices is checked separately.
RNS-8 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
RMK-10 · Controller displays Axiom · T70293
Axiom+ without internal sonar · Direct
NETWORK · RayNet
Included with T70293:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Display operation using a physical keypad
Requires the supplied independent RMK-10 power connection or a compatible PoE switch. A data connection to a display does not itself power the controller.
RMK-10 — Axiom control and package contents · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Quantum 18" Q24C (Wired&WiFi) w/ Pwr · E70210
Axiom+ without internal sonar · Direct
NETWORK · RayNet
Additionally required:1 × A80275 — Quantum Data Cable 10m with Raynet Connector
Separate power supply · Included with E70210:1 × A80309 — Quantum Power Cable 10m with bare wires
Functions: Radar CHIRP
This is the wired connection path. Correct mounting, alignment, power and compatible software are checked during installation.
MARPA and stabilised overlay require suitable heading data.
Quantum Q24C — models and compatible displays · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
View all 19 connections in the guide ↗
Functions & interfaces
Chart navigation · Navigation GPS/GNSS · Display touchscreen · Networked sonar with an additional module
Interface:NMEA 2000 · RayNet · Ethernet · Wi-Fi · Bluetooth
Technical specifications
Equipment type
Chartplotters & MFD
Series
Axiom+
Display diagonal
12″ IPS
Display resolution
1280 × 800
Brightness
1800 nits
Processor
4 cores
Internal storage
16 GB (14 GB available)
Networking
RayNet 10/100 Ethernet · NMEA 2000
Wireless connection
Wi-Fi 802.11 b/g/n · Bluetooth 4.0
GNSS
Built-in receiver GPS / GLONASS / BeiDou · 10 Hz
Power supply
8–16 V DC
Protection
IPX6 / IPX7
Memory cards
1 socket microSDXC
Sonar
Without built-in sonar· a compatible networked module is required and sensor
More images

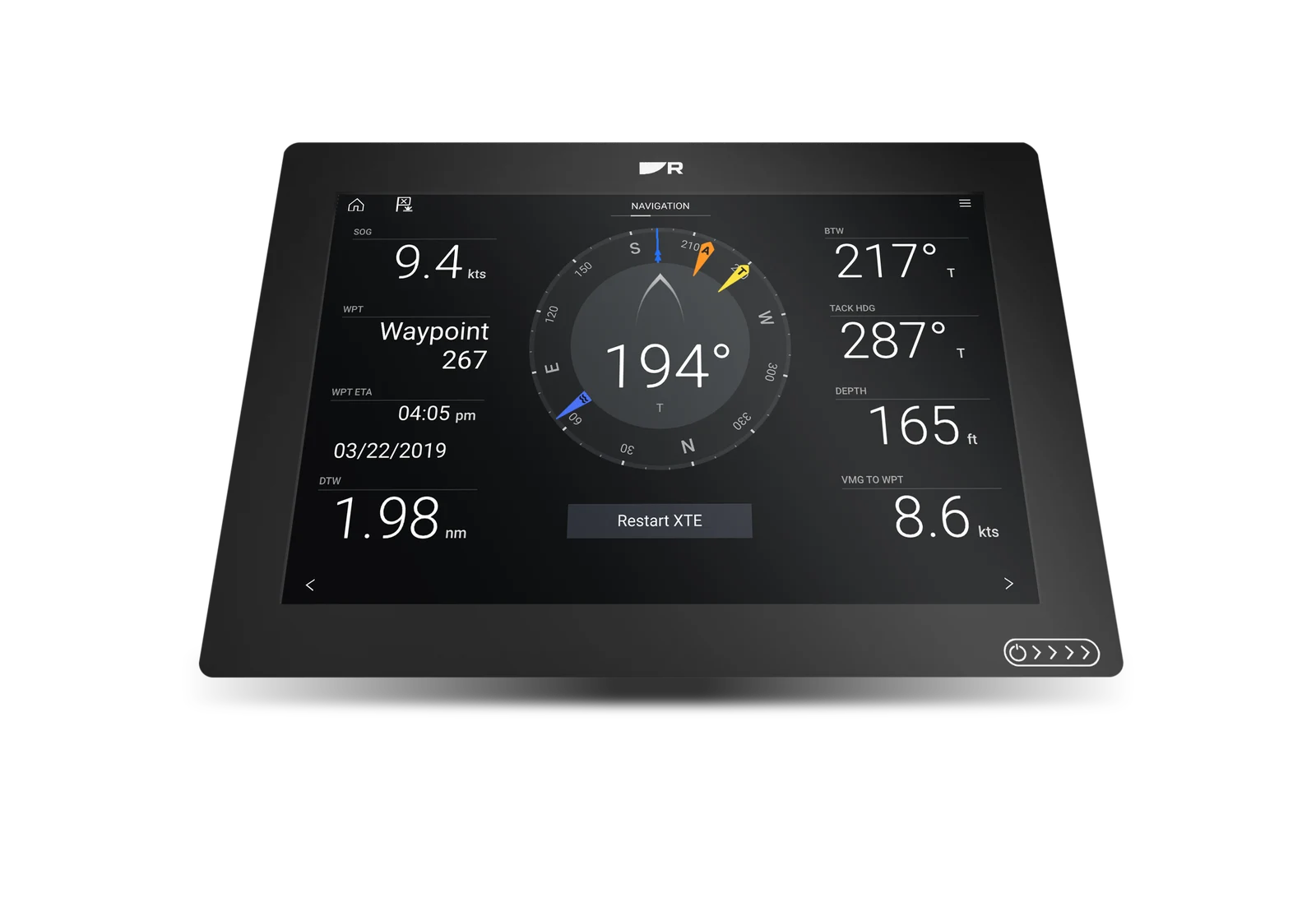

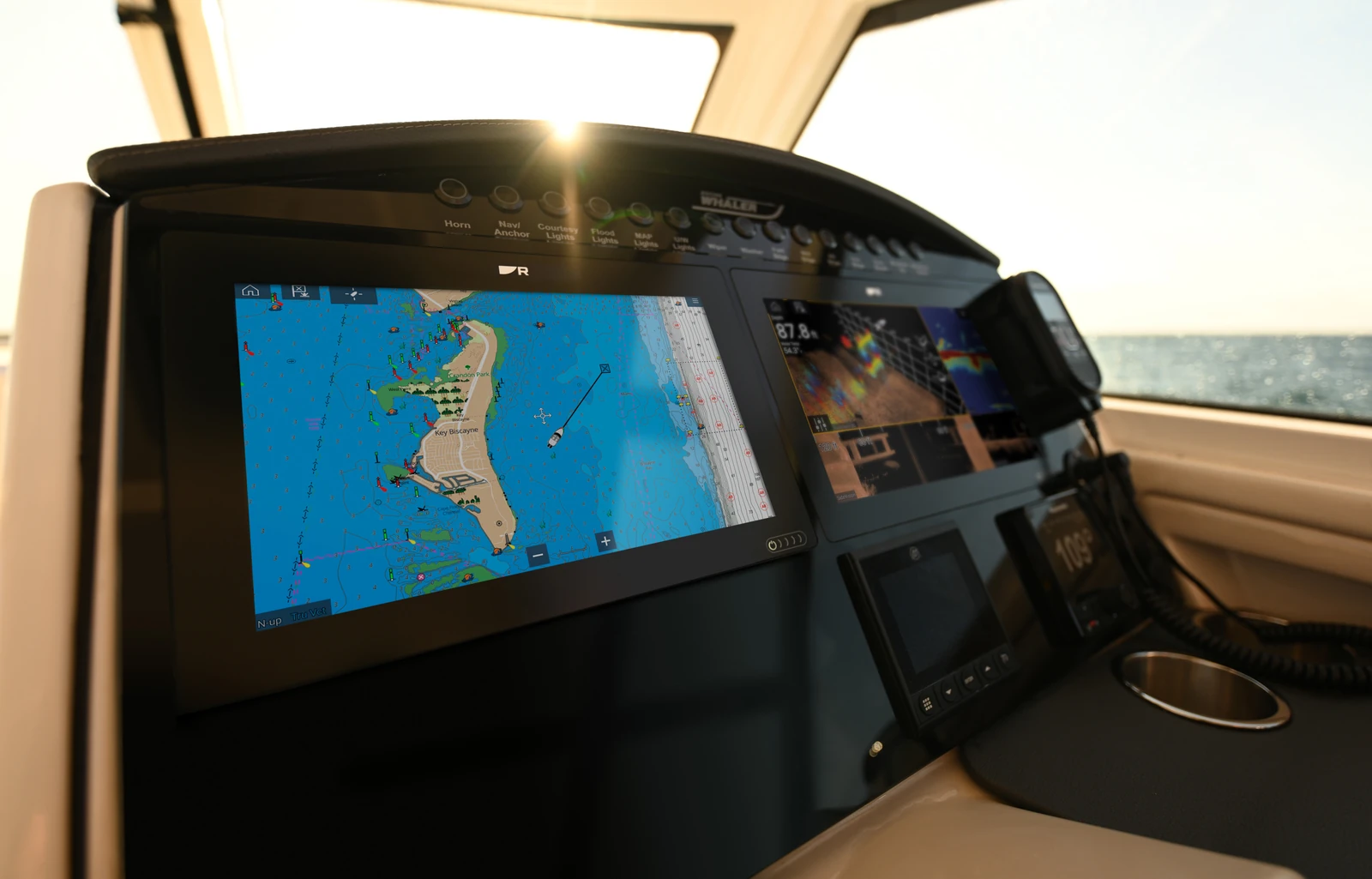

Display 12″ with example navigation data ↗
Image: Raymarine
Image: Raymarine
Documents & technical resources
Axiom+ — installation instructions · English ↗
LightHouse 4 — operating manual · English ↗
Product videos
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
