Raymarine Axiom 2 XL 16
Home / Equipment catalogue / Navigation & Radar / Raymarine Axiom 2 XL 16
Raymarine · Code E70661
Chartplotters & MFD · Chart navigation · GPS/GNSS via an external receiver
Navigation & Radar
Axiom 2 XL 16 — front view and initial display
Image: Raymarine
Discover the product
The Axiom 2 XL 16 is a large navigation display with a 15,6-inch Full HD IPS screen for integrated bridge consoles. Three Gigabit RayNet ports with PoE and HDMI connections link devices and video sources. It has 64 GB of internal storage and NMEA 2000 connectivity. Chart cards require an external reader; NMEA 0183 connects through the A80721 converter.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
19 documented connections · Sources checked: 2026-10-10
Explore connections, components & diagrams ↗
Equipment connection guide ↗
RVM1600 RealVision Black Box Sonar · E70665
Axiom 2 XL · Direct
NETWORK · RayNet
Included with E70665:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Networked sonar display
Requires a compatible LightHouse 4 version, at least 4.4.70, and the same compatible version on every display.
The module requires its own power supply and a compatible transducer. The RayNet cable carries data.
Compatible LightHouse 4 displays · 87436 Rev 2
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
RVX1000 3D CHIRP Sonar Module · E70511
Axiom 2 XL · Direct
NETWORK · RayNet
Included with E70511:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Networked sonar display
Requires a compatible LightHouse 4 version, at least 4.4.70, and the same compatible version on every display.
The module requires its own power supply and a compatible transducer. The RayNet cable carries data.
Compatible LightHouse 4 displays · 87349 Rev 3
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
RNS5 Gigabit Raynet Network Switch · A80731
Axiom 2 XL · Direct
NETWORK · RayNet
Additionally required:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: RayNet network expansion
The switch requires power. Each device occupies one port; functional compatibility between devices is checked separately.
RNS-5 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
RNS8 Gigabit Raynet Network Switch with 4 x POE ports · A80732
Axiom 2 XL · Direct
NETWORK · RayNet
Additionally required:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: RayNet network expansion
The switch requires power. Each device occupies one port; functional compatibility between devices is checked separately.
RNS-8 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
RMK-10 · Controller displays Axiom · T70293
Axiom 2 XL · Direct
NETWORK · RayNet
Included with T70293:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Display operation using a physical keypad
Requires the supplied independent RMK-10 power connection or a compatible PoE switch. A data connection to a display does not itself power the controller.
RMK-10 — Axiom control and package contents · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Quantum 18" Q24C (Wired&WiFi) w/ Pwr · E70210
Axiom 2 XL · Direct
NETWORK · RayNet
Additionally required:1 × A80275 — Quantum Data Cable 10m with Raynet Connector
Separate power supply · Included with E70210:1 × A80309 — Quantum Power Cable 10m with bare wires
Functions: Radar CHIRP
This is the wired connection path. Correct mounting, alignment, power and compatible software are checked during installation.
MARPA and stabilised overlay require suitable heading data.
Quantum Q24C — models and compatible displays · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
View all 19 connections in the guide ↗
Functions & interfaces
Chart navigation · GPS/GNSS via an external receiver · Networked sonar with an additional module
Technical specifications
Equipment type
Chartplotters & MFD
Series
Axiom 2 XL
Display diagonal
15,6″ IPS
Resolution
1920 × 1080
Brightness
1300 nits
Power supply
12 / 24 V DC
Voltage range
8–32 V DC
Internal storage
64 GB
Ethernet
3 × PoE RayNet 10/100/1000 Mbit/s
Video
HDMI input and output · 2 analogue inputs BNC
NMEA 2000
Connection DeviceNet
NMEA 0183
Via a separate converter A80721 in the NMEA 2000
Protection
IPX6 / IPX7
Memory cards
Required external card reader
More images

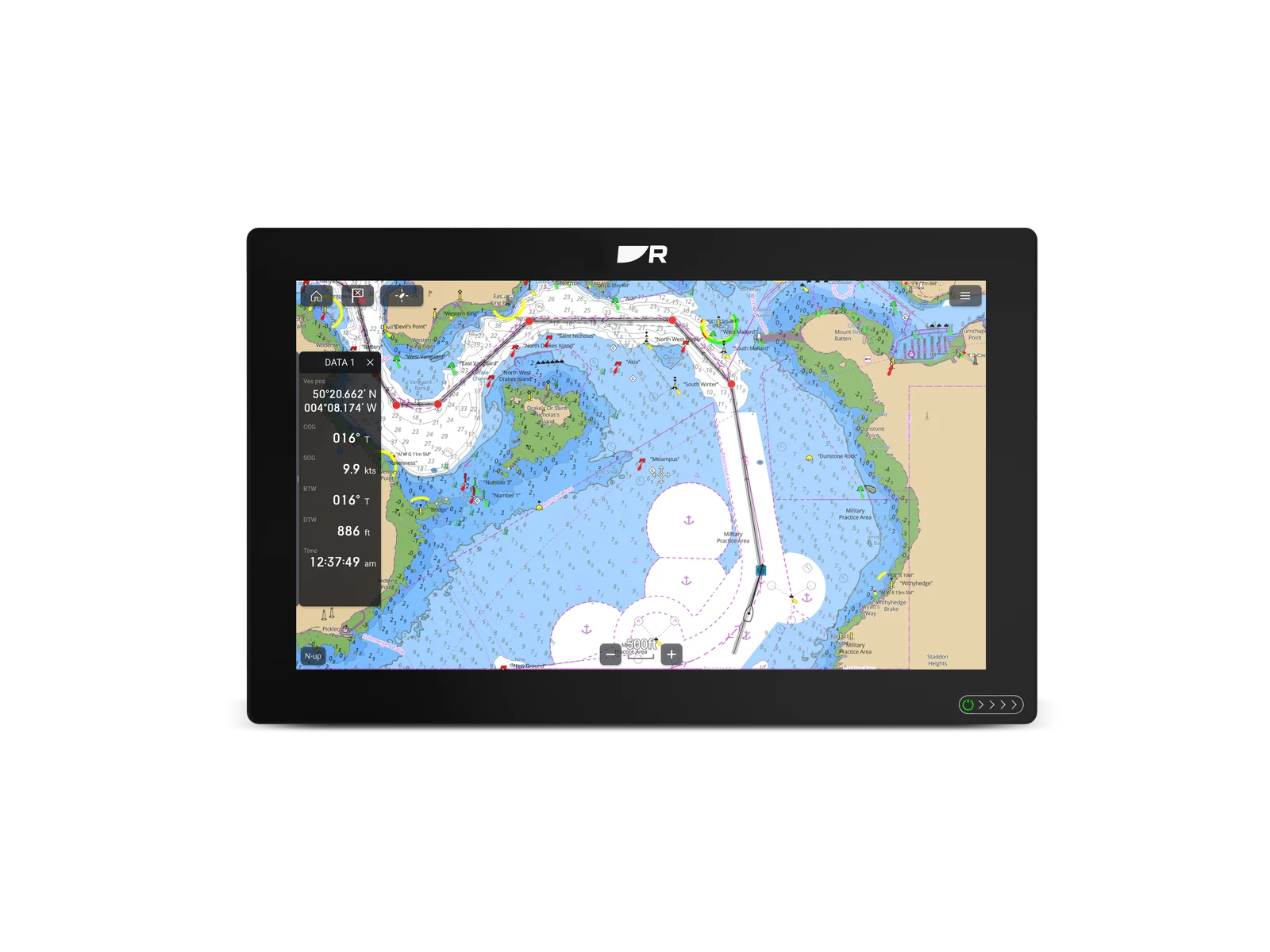

Axiom 2 XL 16 — example chart display LightHouse ↗
Image: Raymarine

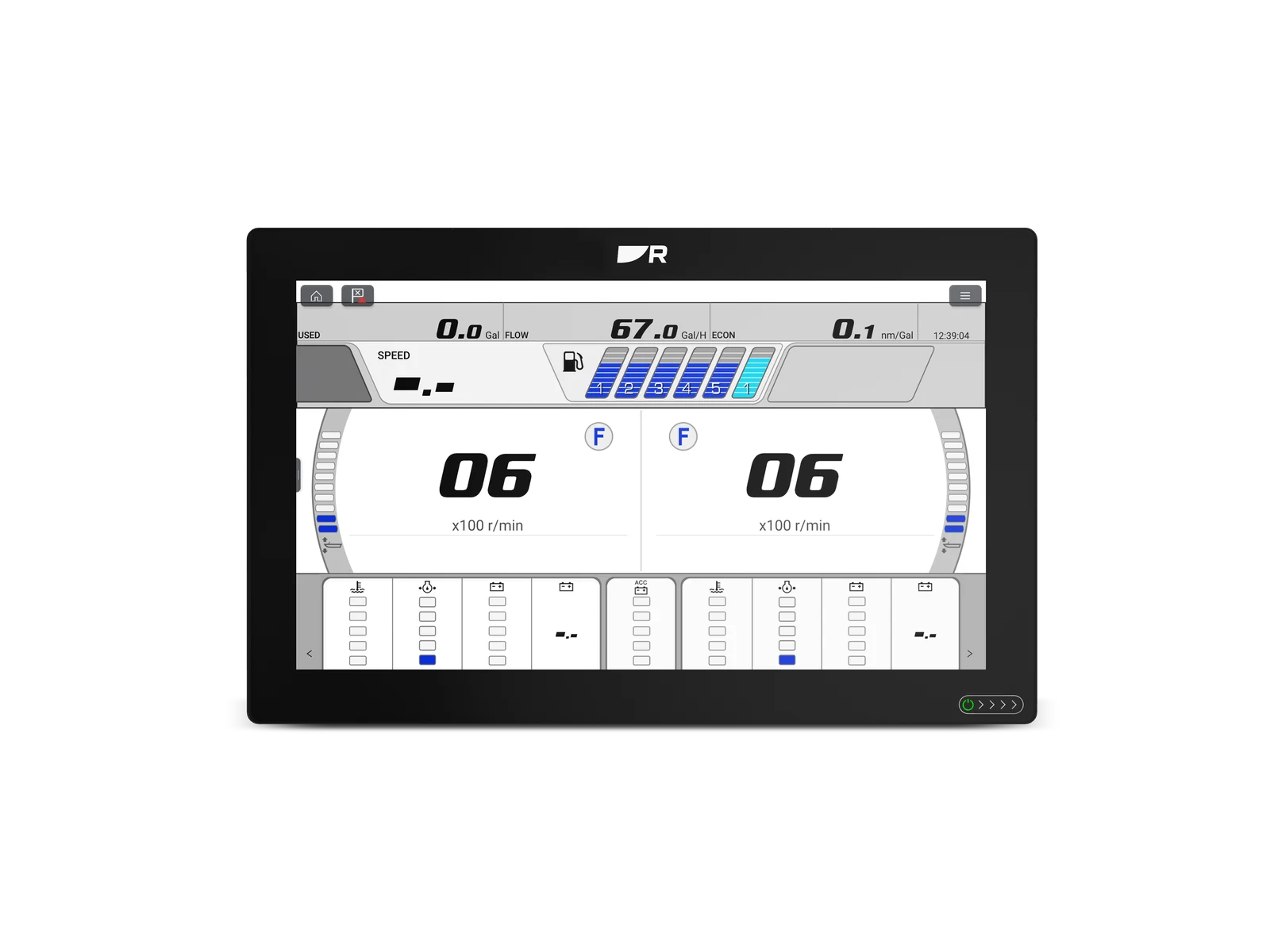

Axiom 2 XL 16 — representative display with a connected compatible engine system Yamaha ↗
Image: Raymarine
Image: Raymarine
Image: Raymarine

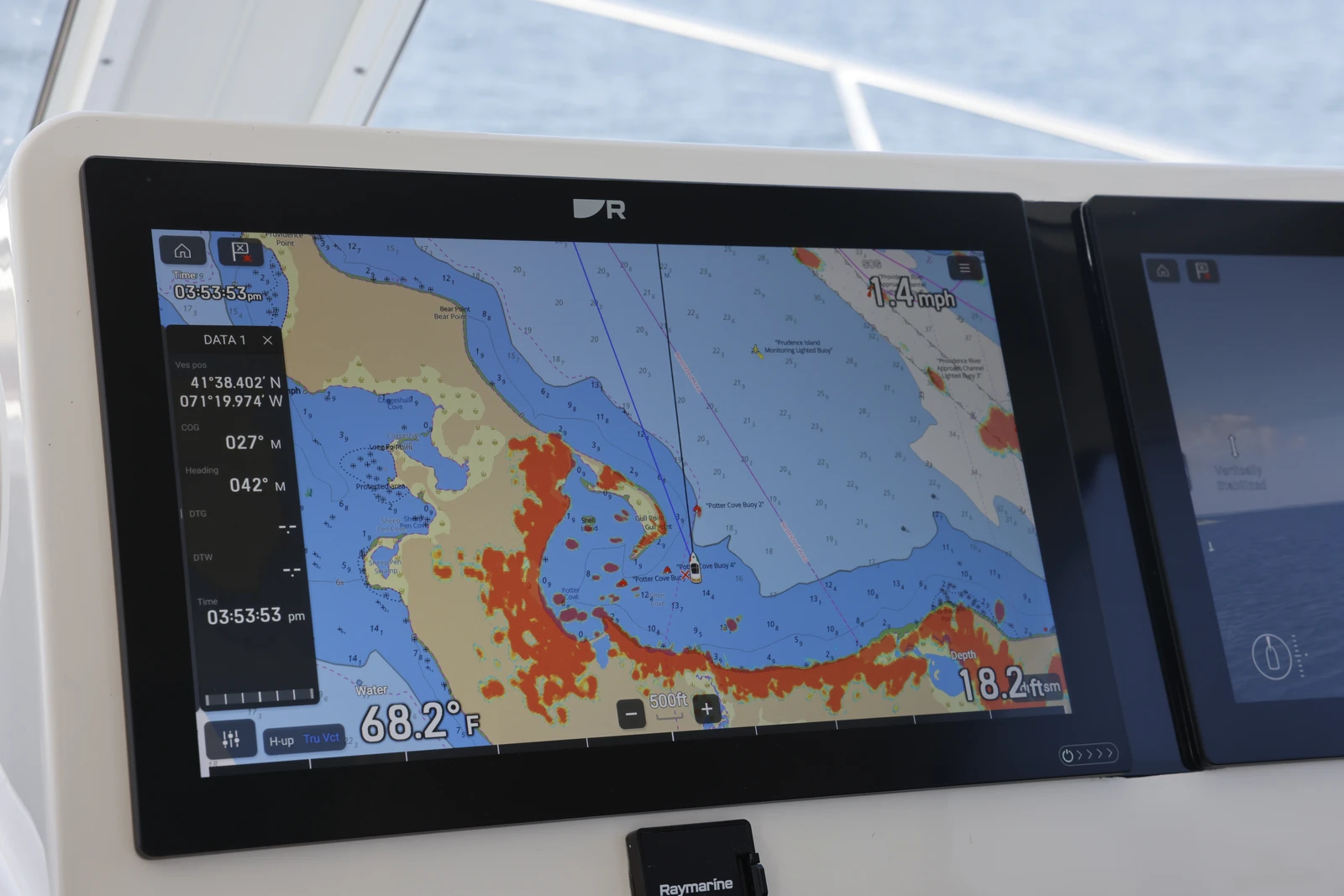

Image: Raymarine / © SACS | STUDIO BORLENGHI
