Raymarine Axiom 2 9
Home / Equipment catalogue / Navigation & Radar / Raymarine Axiom 2 9
Raymarine · Code E70722
Chart navigation · GPS/GNSS
Navigation & Radar

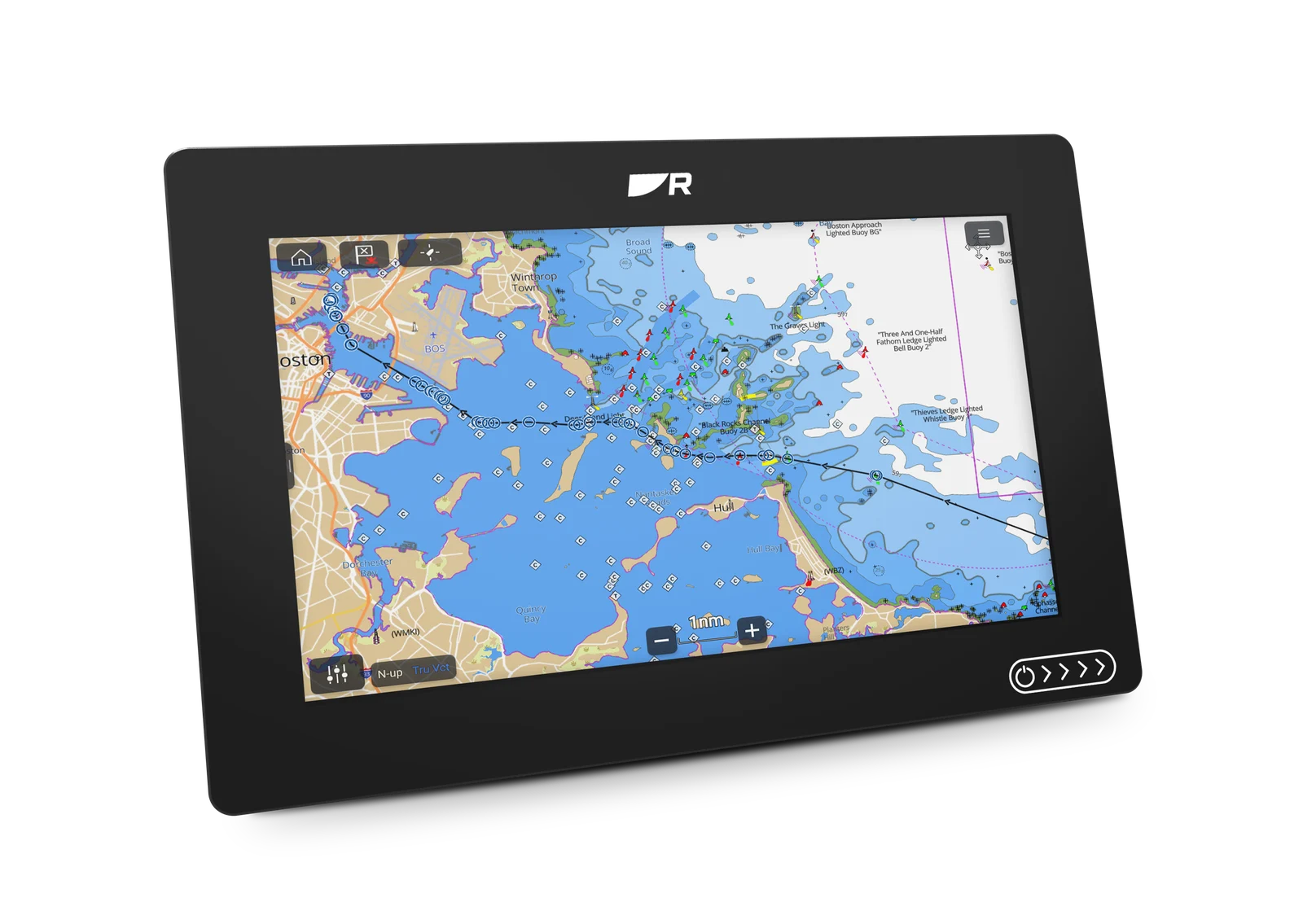

Side view with an example chart display
Image: Raymarine
Discover the product
Raymarine Axiom 2 9 navigation display with a bright 9″ IPS screen, a HydroTough protective coating and built-in GNSS. This version operates as a chartplotter without built-in sonar. Bottom imaging requires a compatible networked module and transducer. Radar, AIS and data from other systems are displayed using the corresponding external equipment. Check the included charts and transducers for the specific part number.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
100 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
RVM1600 RealVision Black Box Sonar · E70665
Axiom 2 without built-in sonar · Direct
NETWORK · Gigabit RayNet
Included with E70665:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Networked sonar display
All displays on the same network need the same compatible LightHouse version. LightHouse 4 and 5 must not be mixed; first-generation Axiom/Axiom+/Pro/XL remain on LightHouse 4.
The module requires independent power and a compatible transducer on its own port. RayNet carries data, not power.
After LightHouse 4.11.133, RVM1600 firmware uses independent version numbering. Check the available compatible version; its number need not match the display’s.
Compatible LightHouse 4 displays · 87436 Rev 2
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
Compatible peripheral product software · 81432 Rev 2
RVX1000 3D CHIRP Sonar Module · E70511
Axiom 2 without built-in sonar · Direct
NETWORK · Gigabit RayNet
Included with E70511:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Networked sonar display
All displays on the same network need the same compatible LightHouse version. LightHouse 4 and 5 must not be mixed; first-generation Axiom/Axiom+/Pro/XL remain on LightHouse 4.
The module requires independent power and a compatible transducer on its own port. RayNet carries data, not power.
Compatible LightHouse 4 displays · 87349 Rev 3
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
RNS5 Gigabit Raynet Network Switch · A80731
Axiom 2 without built-in sonar · Direct
NETWORK · Gigabit RayNet
Additionally required:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: RayNet network expansion
The switch requires power. Each device occupies one port; functional compatibility between devices is checked separately.
RNS-5 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
RNS8 Gigabit Raynet Network Switch with 4 x POE ports · A80732
Axiom 2 without built-in sonar · Direct
NETWORK · Gigabit RayNet
Additionally required:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: RayNet network expansion
The switch requires power. Each device occupies one port; functional compatibility between devices is checked separately.
RNS-8 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
RMK-10 · Controller displays Axiom · T70293
Axiom 2 without built-in sonar · Direct
NETWORK · Gigabit RayNet
Included with T70293:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Display operation using a physical keypad
Requires the supplied independent RMK-10 power connection or a compatible PoE switch. A data connection to a display does not itself power the controller.
RMK-10 — Axiom control and package contents · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
Quantum 18" Q24C (Wired&WiFi) w/ Pwr · E70210
Axiom 2 without built-in sonar · Direct
NETWORK · Gigabit RayNet
Additionally required:1 × A80275 — Quantum Data Cable 10m with Raynet Connector
Separate power supply · Included with E70210:1 × A80309 — Quantum Power Cable 10m with bare wires
Functions: Radar CHIRP
This is the wired connection path. Correct mounting, alignment, power and compatible software are checked during installation.
MARPA and stabilised overlay require suitable heading data.
All displays on the same network need the same compatible LightHouse version. LightHouse 4 and 5 must not be mixed; first-generation Axiom/Axiom+/Pro/XL remain on LightHouse 4.
Quantum Q24C — models and compatible displays · Official manufacturer page · checked 2026-10-10
Quantum — cable part numbers · 87342 Rev 6
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
Compatible Radar scanners · 81432 Rev 2
View all 100 connections in the guide ↗
Functions & interfaces
Chart navigation · Navigation GPS/GNSS · Display touchscreen · Networked sonar with an additional module
Interface:NMEA 2000 · RayNet · Ethernet · Wi-Fi · Bluetooth
Technical specifications
Equipment type
Chartplotters & MFD
Series
Axiom
Display diagonal
9″ IPS
Display resolution
1280 × 720
Brightness
1500 nits
Processor
6 cores
Internal storage
64 GB
Networking
RayNet Gigabit Ethernet · NMEA 2000
Wireless connection
Wi-Fi 802.11 b/g/n · Bluetooth 4.0
GNSS
Built-in receiver GPS / GLONASS / BeiDou · 10 Hz
Power supply
8–16 V DC
Protection
IPX6 / IPX7
Memory cards
1 socket microSDXC
Sonar
Without built-in sonar· a compatible networked module is required and sensor
More images

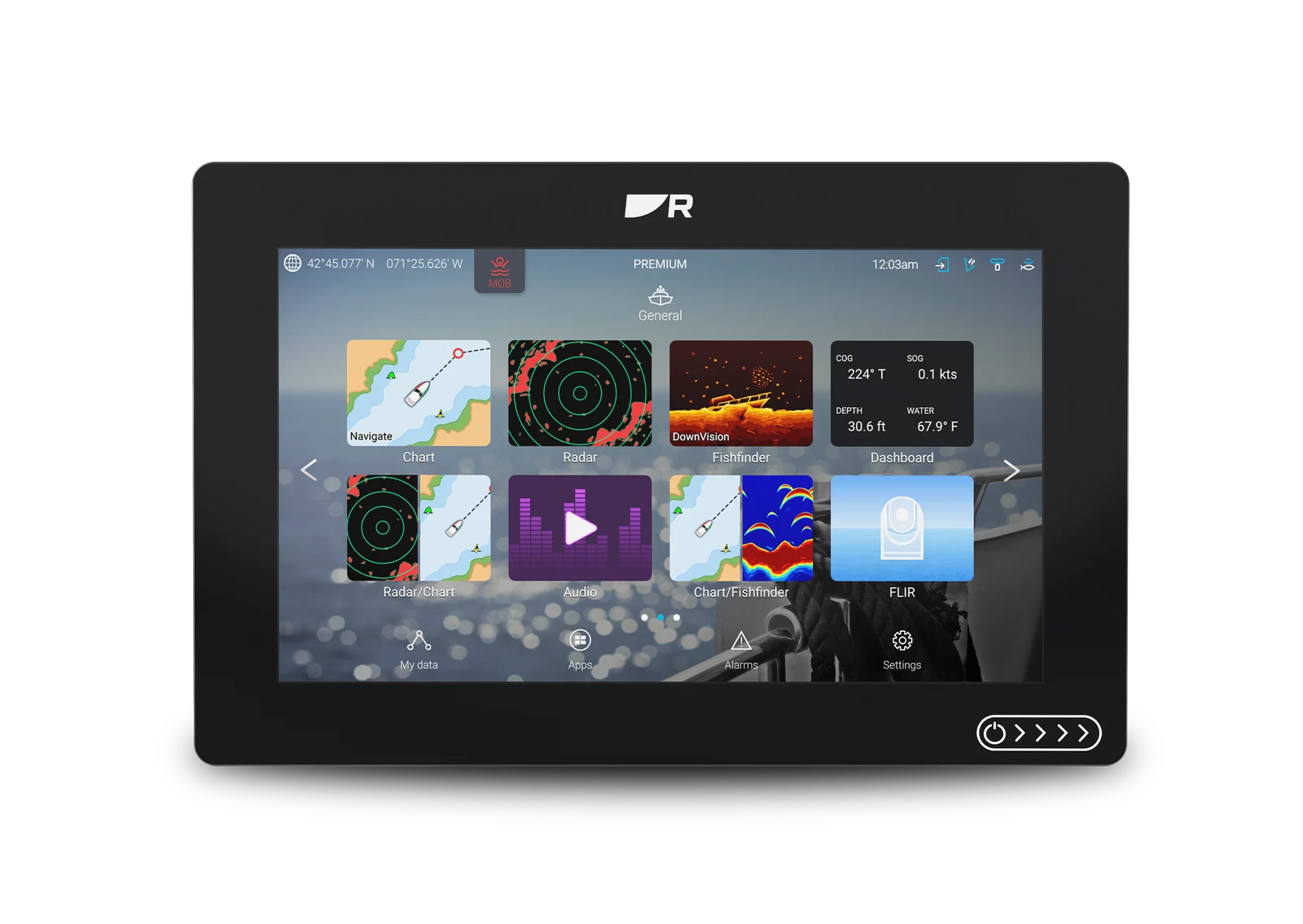

Axiom 2 9 — front view and initial display ↗
Image: Raymarine
Axiom 2 9 — right-hand side view with representative charting ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
Request information by email ↗
