Raymarine Axiom 2 Pro 16 RVM

Display 16″ with example display fishfinder of version RVM.

Image: Raymarine

Discover the product

The Raymarine Axiom 2 Pro 16 RVM combines display IPS 15,6″, control touchscreen and physical buttons for navigation in different conditions. The built-in RealVision MAX combines DownVision, SideVision and 3D imaging seabed, while the separate input CHIRP 1 kW allows configuration for greater depths with the appropriate transducer. The display radar and the autopilot control require compatible external equipment. Sensors and charts are selected according to with the exact part number kit.

We will recommend suitable charts for your cruising area when you contact us.

Compatible equipment

Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.

94 documented connections · Sources checked: 2026-10-10

Explore connections, components & diagrams ↗
Equipment connection guide ↗

RVM-100 RealVision 3D Transom Mount Transducer · A80703
Axiom 2 Pro RVM · Direct
RV/RVM · 25-pin

No additional adapter is required for this connection.

Functions: RealVision Max 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

Directly to the RV/RVM input, without a separate adapter.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

RealVision Max — codes and transducer pair contents · 87443 Rev 7

RVM-100 A80703 — features and compatible sonar modules · Official product page · checked 2026-10-10

RVM-400 / RVM-412 / RVM-420 — package codes and cables · Official product page · checked 2026-10-10

RVM-400 RealVision 3D Stainless Steel Through Hull Transducer 0° · A80704
Axiom 2 Pro RVM · Direct
RV/RVM · 25-pin

No additional adapter is required for this connection.

Functions: RealVision Max 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

Directly to the RV/RVM input, without a separate adapter.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

RealVision Max — codes and transducer pair contents · 87443 Rev 7

RVM-100 A80703 — features and compatible sonar modules · Official product page · checked 2026-10-10

RVM-400 / RVM-412 / RVM-420 — package codes and cables · Official product page · checked 2026-10-10

Pack of RVM-412 RealVision 3D Stainless Steel Thru Hull Txds · T70543
Axiom 2 Pro RVM · Direct
RV/RVM · 25-pin

Included with T70543:1 × A80478 — Cable Y for pair sensors RealVision / RealVision Max

Included with T70543:1 × A80477 — 8m RealVision 3D Transducer Extension Cable

Functions: RealVision Max 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

This connection applies to the complete two-transducer package. A80478 and A80477 are included; there is no need to buy them again.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

RealVision Max — codes and transducer pair contents · 87443 Rev 7

RVM-400 / RVM-412 / RVM-420 — package codes and cables · Official product page · checked 2026-10-10

Pack of RVM-420 RealVision 3D Stainless Steel Thru Hull Txds · T70544
Axiom 2 Pro RVM · Direct
RV/RVM · 25-pin

Included with T70544:1 × A80478 — Cable Y for pair sensors RealVision / RealVision Max

Included with T70544:1 × A80477 — 8m RealVision 3D Transducer Extension Cable

Functions: RealVision Max 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

This connection applies to the complete two-transducer package. A80478 and A80477 are included; there is no need to buy them again.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

RealVision Max — codes and transducer pair contents · 87443 Rev 7

RVM-400 / RVM-412 / RVM-420 — package codes and cables · Official product page · checked 2026-10-10

RV-100 RealVision 3D Transom Mount Transducer, Direct connect to Axiom MFDs 8m · A80464
Axiom 2 Pro RVM · Direct
RV/RVM · 25-pin

No additional adapter is required for this connection.

Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

Uses the transducer’s RealVision capabilities; it does not become a RealVision Max transducer.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

RealVision — codes and transducer pair contents · 87443 Rev 7

RV-200 RealVision 3D Bronze Through Hull Transducer 0° · A80465
Axiom 2 Pro RVM · Direct
RV/RVM · 25-pin

No additional adapter is required for this connection.

Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

Uses the transducer’s RealVision capabilities; it does not become a RealVision Max transducer.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

RealVision — codes and transducer pair contents · 87443 Rev 7

View all 94 connections in the guide ↗

Functions & interfaces

Chart navigation · Navigation GPS/GNSS · Built-in sonar · CHIRP · HybridTouch · RealVision MAX · DownVision · SideVision · RealVision 3D

Interface:NMEA 2000 · RayNet · Ethernet · Wi-Fi · Bluetooth

Technical specifications

Equipment type
Chartplotter / fishfinder

Series
Axiom 2 Pro

Display diagonal
15,6″ IPS

Display resolution
1920 × 1080

Brightness
1200 nits

Operation
Display touchscreen and buttons HybridTouch

Processor
6 cores

Internal storage
64 GB

Networking
2 × RayNet Gigabit Ethernet · NMEA 2000

Wireless connection
Wi-Fi 2,4 / 5 GHz · Bluetooth 4.0

GNSS
Built-in receiver GPS / Galileo / GLONASS / BeiDou · 10 Hz

Power supply
8–32 V DC

Protection
IPX6 / IPX7

Memory cards
2 slots microSDXC

Video
Output micro-HDMI · analogue input BNC

Built-in sonar
RealVision MAX and dual-channel CHIRP 1 kW

Connection sensors
25-pin RealVision MAX + 11-pin CHIRP 1 kW

Band CHIRP 1 kW
42–250 kHz, depending on with the transducer

More images

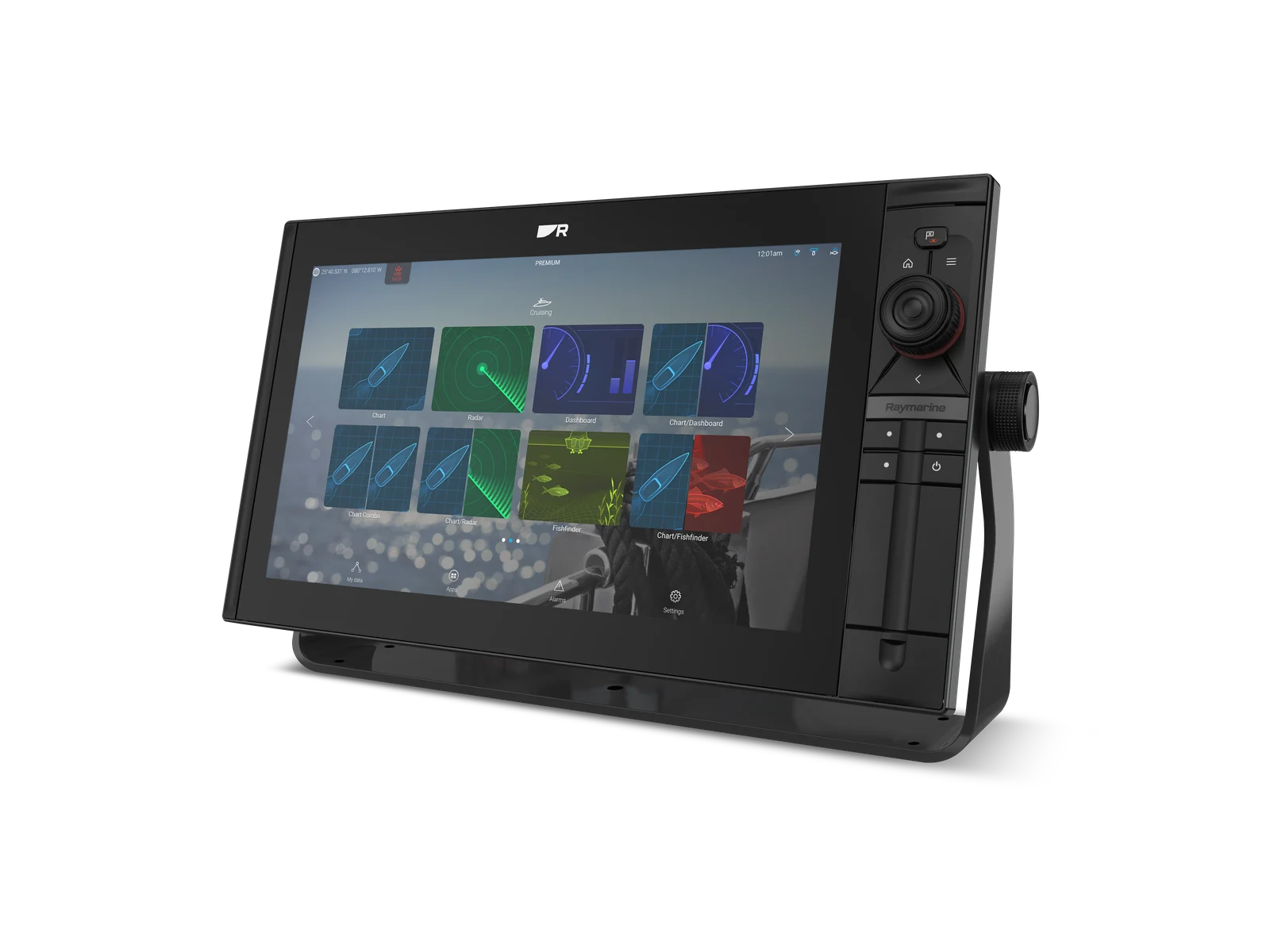

Side view front view 16″ with home screen LightHouse. ↗

Image: Raymarine

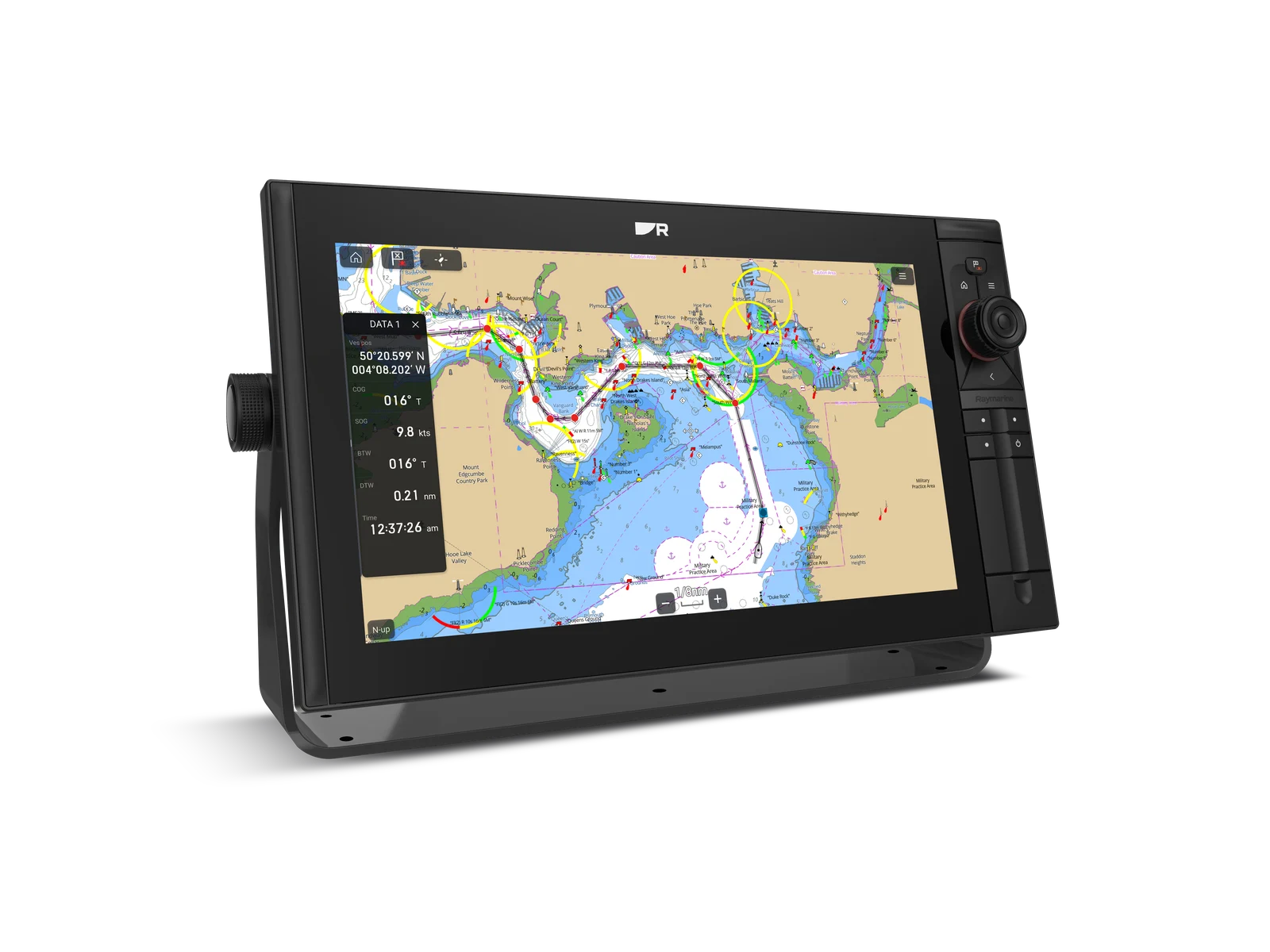

Display 16″ with an example chart and route planning. Chart coverage depends on the part number. ↗

Image: Raymarine

The range Axiom 2 Pro in sizes 9″, 12″ and 16″. Each part number refers to one display· the applications are representative of the range. ↗

Image: Raymarine

Axiom 2 Pro displays at a fishing boat helm. Sonar and charting functions depend on the version and the connected equipment. Representative Axiom 2 Pro installation; the version, size and other equipment may differ. ↗

Image: Jason Arnold / FLIR Marine

Axiom 2 Pro in helm at the dusk, with image from a separately connected thermal camera. The camera and the other equipment are not included in the display. Representative Axiom 2 Pro installation; the version, size and other equipment may differ. ↗

Image: Jason Arnold / FLIR Marine

Documents & technical resources

Axiom 2 Pro — installation instructions · English ↗

Product videos

Overview Axiom 2 Pro — LightHouse 4 (2023) ↗

Selection & compatibility

This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.

Official manufacturer page ↗

Browse the equipment

Navigation & Radar ↗

Fishfinders & Sonar ↗

Raymarine ↗

Selection & connection guides

Versions sonar Axiom ↗

RVM transducers and adapters ↗

Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
